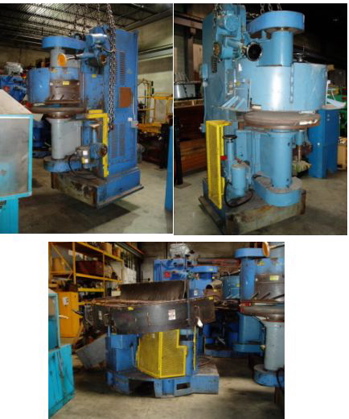

 Besly 918-30T D.E. Vertical Spindle Tandem Grinder
Inventory #: 206108
Serial
#:
New:
Capacity: 30” |
Catalog
Specs:
Catalog Specs: Spindle Drive Motor Max. HP - 25 Fixture Drive Motor Max. HP - 1 Fixture Speed Range - ToSuit Feed Wheel Maximum Dia. - 80" Abrasive Disc Max. Dia. - 30" Abrasive Thickness (Usable) - 3" Exhaust Requirements - 7000 cfm Floor Space - 125" x 170" approx. Net Weight - 20,000 lbs. approx. Spring Length - Max. - 8.0" Spring Diameter - Max. - 2.0-2.5" Wire Diameter - Max. - 5/16" (.312")-3/8
Equipped With:
Equipped With: Power Elevation on All Heads 25 HP Spindle Motors 80" Diameter Feed Wheel (approx.) 2 Dressers 480 VAC Measured Distance Between Grinding Stones approx. 15”
Location: Lake Forest
