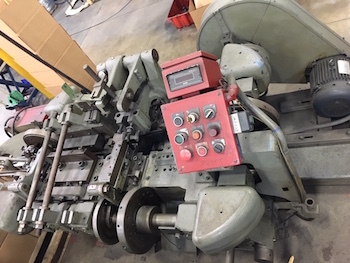

 Nilson S-3F 4-Slide
Inventory #: 219188
Serial
#: 100380
New: 1975
Capacity: 3/16” |
Catalog
Specs:
Maximum Diameter Basic Wire ............3/16" (.187") Maximum Width Strip Metal.............................2" Standard Feed Length ..................................15" Standard Slide Strokes Front...............................1 3/4" Sides...............................3 1/2" Back................................1 3/4" Sroke of Sripper Rod................2" Motor...............3 h.p. Variable Speed Production...................32 - 130 spm Opening in Bed............8 1/2" x 6 1/2" Wire Line...........................35 5/8" Floor Space......................61" x 95" Weight.............................5000 lbs. Press Attachment Specs. Max. Tons...20, Stroke...1", Die Set Length...16 1/4", Length of Die Space...14"
Equipped With:
Equipped with: Air Clutch & Brake Shell Type Cams Form Stripper, Form Lifter Variable Frequency Drive 230 VAC
Location: Lake Forest
