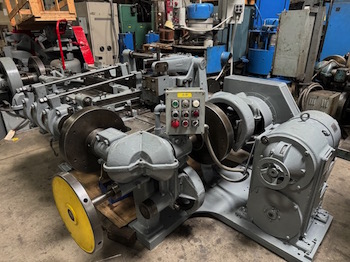

 Nilson S-4F 4 Slide
Inventory #: 223129
Serial
#: 68534
New: 1954
Capacity: .250” |
Catalog
Specs:
Maximum Diameter Basic Wire 1/4" (.250") Maximum Width Strip Metal 2 1/2" Standard Feed Length 15" Standard Slide Strokes Front 2" Sides 4 1/8" Back. 2 1/8" Sroke of Sripper Rod 2 5/8" Motor 7.5 h.p. Variable Speed Production 30 - 120 spm Opening in Bed. 8 1/2" x 9 1/4" Wire Line 36 1/2" Floor Space 84" x 122", Weight 10500 lbs. Press Attachment Specs. Max. Tons 30 Stroke 1 1/2" Die Set Length 21 3/4” Length of Die Space 18 1/2"
Equipped With:
Equipped with: Electric Clutch/Brake Shell Type Cams ( missing some inserts) Form Stripper Form Lifter Variable Speed Drive Single Plane Flat Stock Straightener
Location: Lake Forest
