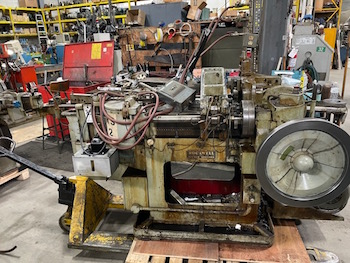

 Baird (Rockwell) 28 Multi-Slide
Inventory #: 221027
Serial
#: MT13342
New:
Capacity: 3/32” |
Catalog
Specs:
Maximum Wire Diameter......................3/32" Standard Width Coil Stock....................3/4" Roll Straightener Size.............................No. 2 Maximum Feed Length.........................6" (7 1/4" w/o feed stops) Operating Speed.....................................200 rpms Standard Stroke With Cams Front Slide...........................1" Rear Slide.............................7/8" Side Slides............................1 5/8" Vertical Motion....................5/8" Opening in Bed....................................4 3/4" x 4 1/2" Diameter of Cam Shafts..........................1 9/16" Floor Space........54" x 44" Weight........1010 lbs.
Equipped With:
Equipped with: Mechanical Clutch, Electric Brake Standard Duty Press w/Tie Bar & Bolster Form Stripper, Positive Blank Holder No Cutoff 1 Plane Straightener Kopp Variable Speed Drive
Location: Lake Forest
