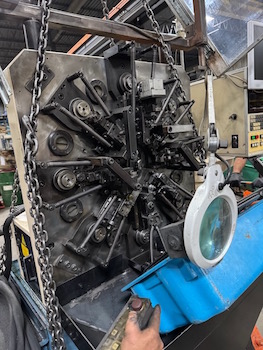

 Itaya MCS-15G CNC Wire Former
Inventory #: 225074
Serial
#: 9412
New: 1998
Capacity: 1.5mm |
Catalog
Specs:
Wire Diameter: .0157" (0.4mm) - .059” (1.5mm) Maximum Spring Diameter: .585" (15mm) Maximum Spring Length: 3.9" (100mm) Camshaft Characteristics: Min. Increment: Plus or Minus 0.05 Degrees Max. Increment: Plus or Minus 359.9 Degrees Max Speed: 300 rpm Wire Feed Characteristics: Min. Increment: .0007"(.02mm) Max. Increment 393" (9999.98mm) Max. Feed Speed: 295 ft/min" per min.(90 m/min) Slide Axis: Min. Increment: .001 Max. Increment 99.999 Max. Speed: 800 rpm Memory: 600 steps per program, Program Storage: 200 program 3.5" floppy disk Power: Wire Feed 1500W, Camshaft 1500W , Slide 200W Power Consumption: (200v/3/60): 15A Dimensions: 65" x 59" x 32" HxWxD, Weight: 1763 lbs.
Equipped With:
Equipped with: Rotary Quill 2 Servo Spinners Flat Screen Monitor 6 Slides, 3 U attachments Floppy Drive 95000 hours
Location: Lake Forest
