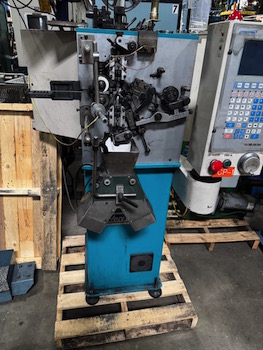

 Yeou-Hey CF208 CNC Spring Coiler
Inventory #: 225164
Serial
#: 4102
New:
Capacity: |
Catalog
Specs:
(Simco CSC-208 Specs) Wire Diameter 0.1-0.8 mm Min. Spring Index 4 Max Spring OD 20 mm Max Feed Length Unlimited Max Production Rate 550 pcs/min Max Feed Speed 100 m/min Motors Capacity 0.75/0.75 kw Memory Steps 5000 Power 220V, 3 phase Dimensions 920 x 760 x 1520 mm Weight 350 kgs
Equipped With:
Equipped with: 2 Axis Servo Control Moyer Merlin Spring Gage (s/n 5856) with Probe and Pitch Control and 2 Way Sorter RH and LH Coiling Extra Tooling
Location: Lake Forest
